Alfa Laval Launches Preassembled Ballast Water System for Faster Installation

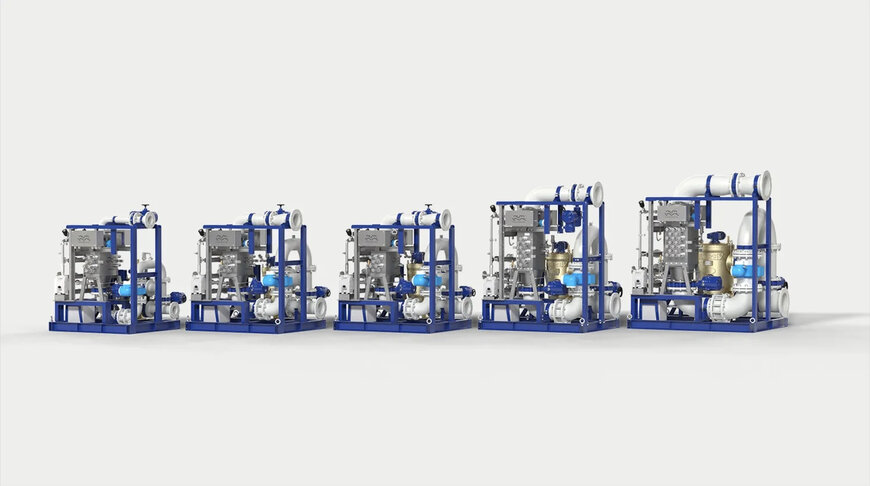

Alfa Laval has launched a compact, skid-mounted ballast water management system designed for integration into maritime vessels. This automated solution combines high-performance filtration with ultraviolet treatment to provide a chemical-free biological disinfection method for the global shipping industry.

Preassembled Filtration And Ultraviolet Disinfection Architecture
Shipyards increasingly require standardized, factory-assembled turnkey solutions to reduce engineering effort and minimize onboard installation time. The newly introduced skid solution integrates all core treatment components and prefabricated piping onto a single modular framework. The system operates without chemicals, utilizing an automated inline process that combines physical filtration with enhanced ultraviolet (UV) treatment. This configuration achieves biological disinfection across fresh, brackish, and marine waters, maintaining efficacy even in low-clarity conditions by utilizing an optimized UV reactor design that delivers the required dosage while maintaining low energy consumption.

Integration Capabilities And Installation Logistics
The prefabricated unit is delivered fully assembled, factory-tested, and ready for connection, significantly reducing project complexity for marine engineers. The skid-mounted format is engineered for processing capacities ranging from 32 to 600 cubic meters per hour. All units are delivered connectivity-ready, facilitating remote monitoring and lifecycle service support. The system holds official type approvals from the International Maritime Organization (IMO) and the United States Coast Guard (USCG). Alfa Laval expanded its maritime portfolio by debuting this preassembled module at SMM 2026, held from September 1 to 4, 2026, in Hamburg, Germany.

Operational Efficiency And Maritime Industry Compliance
With global marine environmental regulations strictly governing ballast water discharge, standardized compliance tools are necessary for continuous vessel operation. Tobias Döscher, Head of Global Sales and Customer Support for Alfa Laval PureBallast, noted that adapting the existing treatment technology into a space-efficient skid solution allows maritime operators to select configurations that match specific vessel constraints while maintaining biological treatment standards. As other market participants alter their focus, Alfa Laval continues to provide lifecycle support for vessel operators, a claim supported by an established global installation base exceeding 10,000 systems.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement**

Ballast water management systems (BWMS) utilizing UV and filtration are evaluated based on their footprint, volumetric processing capacity, and modular flexibility. The Alfa Laval PureBallast 3 Ultra Skid provides a preassembled treatment capacity ranging from 32 to 600 cubic meters per hour in a single unit. For comparison, the Optimarin Ballast System (OBS) operates on a similar chemical-free UV and filtration principle. The OBS utilizes single-lamp UV chambers that each process up to 167 cubic meters per hour, which can be manifolded in parallel to reach extended capacities up to 3,000 cubic meters per hour. Both platforms hold IMO and USCG type approvals and emphasize space-efficient retrofitting for existing vessels, though Alfa Laval’s single-skid design specifically consolidates all core components onto one frame for standard mid-range flow capacities.

Edited by Natania Lyngdoh, Induportals editor, assisted by AI.
