Precision Measuring Systems for Free Space Optical Communication

Kaman Precision Products has highlighted its family of precision differential non-contact eddy current measuring systems designed for free space optical communication. The product range provides high-resolution position feedback for fast steering mirror control and other precision optical positioning applications used in satellite communications, defense systems, and advanced imaging technologies.

Precision position feedback for optical communication systems
Free space optical communication relies on highly accurate beam alignment to transmit laser signals across long distances without physical transmission media. Even minor positioning errors can reduce communication performance. Differential eddy current measuring systems provide continuous non-contact displacement measurement, enabling fast steering mirrors to maintain accurate laser alignment despite vibration, thermal expansion, or platform movement.

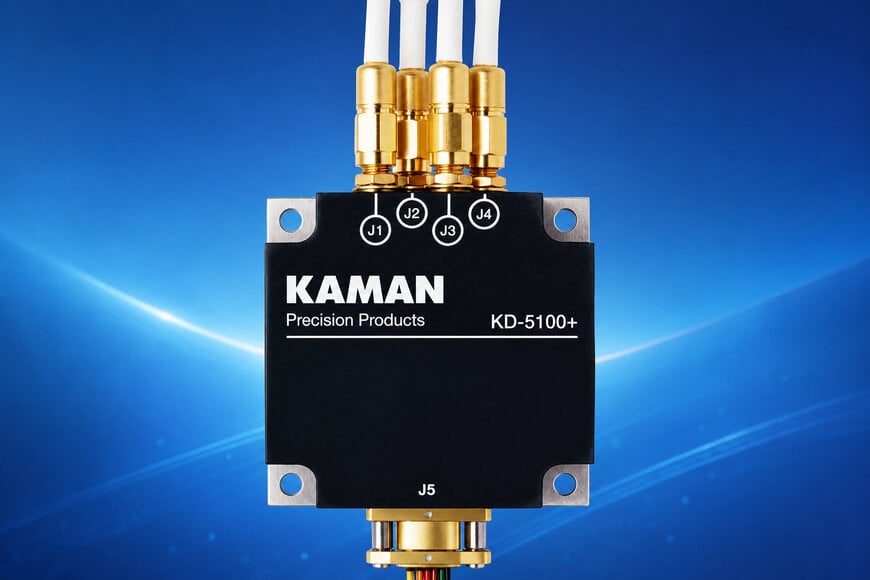

Kaman's product family includes the KD-5100+ high-reliability displacement measurement system, the DIT-5200L commercial differential impedance transducer, and the KD-5600 digital differential measuring system. These systems are intended for commercial and military imaging satellites, communication satellites, interplanetary exploration vehicles, laser targeting equipment, night vision systems, and optics stabilization applications.

KD-5100+ addresses SWaP-C requirements
The KD-5100+ has been developed for applications requiring reduced size, weight, power, and cost (SWaP-C). Measuring only 2 × 2.12 × 0.75 inches, the system is intended for laser communication satellites, ground stations, image stabilization systems, and directed energy platforms deployed on ground, naval, and airborne systems.

The measuring system is manufactured to Mil-PRF-38534 Class H requirements and incorporates MIL-SPEC electronic components. Its differential inductive sensing technology delivers stable, high-resolution displacement measurement for conductive targets while maintaining reliable operation in demanding aerospace environments.

Digital measurement with high-bandwidth communication
The KD-5600 combines custom sensors, signal processing electronics, analog-to-digital conversion, and calibration technology within a digital measurement platform. The system supports high-bandwidth data acquisition, high linearity, and digital communication interfaces for rapid data transfer, making it suitable for precision optical alignment and automated positioning systems.

Digital signal processing also simplifies integration into modern control architectures while maintaining accurate displacement measurements required by optical communication equipment and precision motion control.

Commercial differential sensing for precision applications
The DIT-5200L provides a commercial-grade alternative for applications requiring differential measurement with common-mode noise rejection. The system is capable of subnanometer resolution with sensitivity of up to 10 V/mil (39 mV/μm) and linearity of up to 0.1% of full range.

Built to IPC Class 3 manufacturing standards, the analog system incorporates reverse-polarity protected power inputs and a 9-pin mini-D connector for integration into industrial and laboratory environments. Depending on project requirements, the system also supports commercial-off-the-shelf screening for higher reliability programs.

Application areas for differential displacement sensing
The measuring systems are intended for applications requiring continuous non-contact position measurement with high repeatability. Typical use cases include fast steering mirror control, optics stabilization, antenna positioning, precision telescope alignment, laser communication terminals, semiconductor equipment, and scientific instrumentation where micron- and nanometer-level positioning accuracy directly affects system performance.

Additional Context: Technical specifications and competitive benchmarking
Differential eddy current displacement sensors compete with other non-contact precision measurement technologies, including laser interferometers, capacitive displacement sensors, and alternative eddy current systems from suppliers such as Micro-Epsilon and Lion Precision. Technology selection generally depends on measurement range, environmental conditions, bandwidth, and target material.

Compared with optical displacement measurement, differential eddy current systems are less sensitive to contamination, lighting conditions, and surface finish while providing high bandwidth for closed-loop motion control. The Kaman product family offers subnanometer resolution, differential common-mode rejection, and measurement bandwidths suitable for precision optical control systems, making the technology appropriate for aerospace, semiconductor manufacturing, and advanced industrial positioning applications.
